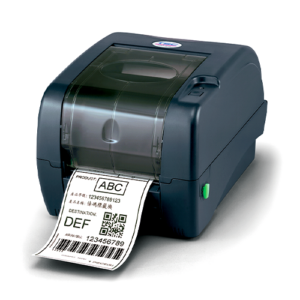

The TSC MH241T thermal transfer printer is a reliable and efficient printing solution that delivers high-quality labels and barcodes.
This printer is ideal for a variety of applications, including shipping and receiving, inventory management, and product labelling.
Benefits:
- Versatile Printing: The TSC MH241T can print a wide range of label sizes and types, including fanfold, roll, and die-cut labels, as well as continuous and perforated tags.
- High-Resolution Printing: With a 203 dpi print resolution, the TSC MH241T produces clear and crisp text and graphics, ensuring easy readability and scanning of barcodes.
- Easy to Use: The intuitive LCD screen and easy-to-navigate menu make it easy to set up and operate the printer, even for beginners.
- Durable Design: The TSC MH241T is built to last, with a rugged metal chassis that can withstand the demands of industrial environments.
- Fast Printing Speed: With a print speed of up to 4 inches per second, the TSC MH241T can handle high-volume printing jobs quickly and efficiently.
Specifications:
| Feature | Specification |
|---|---|
| Printing Method | Thermal Transfer and Direct Thermal |
| Resolution | 8 dots/mm (203 DPI) |
| Max. Print Speed | 4 inches per second / 356 mm (14”)/second |
| Max. Print Width | 104 mm (4.09”) |
| Max. Print Length | 25,400 mm (1000”) |
| Memory | • 512MB Flash memory • 256MB SDRAM • microSD Flash memory card reader for Flash memory expansion, up to 32 GB |
| Connectivity | • RS-232 • USB 2.0 (High-speed mode) • Internal Ethernet, 10/100 Mbps • USB host *2 (Front side), for scanner or PC keyboard • GPIO (DB15F) + Centronics (factory option) • Internal Bluetooth 5.0 MFi (factory option) • Slot-in 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (dealer option) |
| Sensors | • Gap transmissive sensor (position adjustable) • Black mark reflective sensor (Bottom or Top black mark sensor switchable and position adjustable) • Head open sensor • Ribbon encoder sensor • Ribbon end sensor • Media near-end sensor |
| Media Types | Continuous, die-cut, black mark (Bottom side or top side black mark), fan-fold, notch, perforated, tag, care label (outside wound) |
| Media Width | 20 ~ 114 mm (0.79″ ~ 4.5″) |
| Media Thickness | 0.06 ~ 0.28 mm (2.36 ~ 11 mil) |
| Media Core Diameter | 38.1 mm / 76.2 mm (1.5”/ 3”) |
| Dimensions | 260 mm (W) x 360 mm (D) x 228 mm (H) |
| Weight | 11.5 kg (25.4 lbs) |
| Warranty | • Printer: 2 years • Print head: 25 km (1 million inches) or 12 months which comes first • Platen: 50 km (2 million inches) or 12 months which comes first |
| Factory options | • GPIO (DB15F) + Parallel interface • Internal Bluetooth 5.0 MFi* |
| Dealer options | • Regular cutter (full-cut guillotine cutter) • Heavy-duty cutter (full-cut guillotine cutter) • Care label cutter • 1” I.D. core media spindle |
| User option | • Regular cutter (full-cut guillotine cutter) • Heavy-duty cutter (full-cut guillotine cutter) • Care label cutter • 1” I.D. core media spindle |
