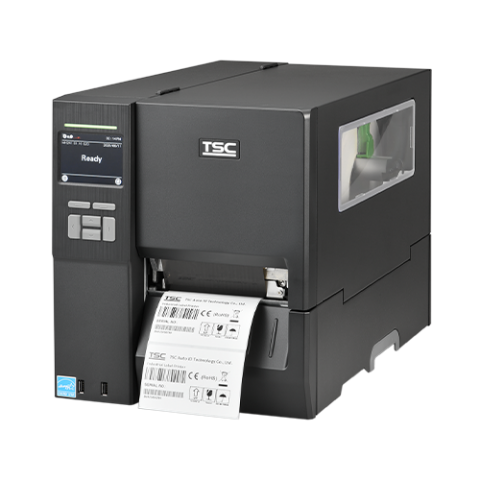

TSC MH641T Thermal Transfer Label Printer – 300dpi 10ips
MH Series 4-Inch Performance Industrial Printers
The TSC MH Series industrial barcode label printers have premium printhead technology, a fast processor, and memory capacity to print high-quality labels faster.
There are 18 MH series 4-inch wide printer models available in the TSC performance industrial printer lineup. This series offers print resolution at 203 dpi and print speeds up to 14 ips, 300 dpi resolution to print speeds up to 12 ips, and 600 dpi resolution which makes it ideal for printing very small 2D barcodes, graphics, fine print, and other ultra-high-resolution images. Multiple resolutions and the ability to print on a wide variety of labels, ranging from healthcare patient safety, electronics, and jewellery labelling to shipping and distribution labels, make the MH Series ideal for industrial-duty printing.
Industries and Applications |
|||
 |
 |
 |
 |
| Warehouse & Fulfillment | Transportation & Logistics | Manufacturing | Shipping and Logistics |
STANDARD CONFIGURATION:
Thermal transfer label printers
256MB SDRAM
512MB Flash
4.3“ Touch LCD
Internal Ethernet
RS-232 Centronics
USB 2.0 USB host
WiFi slot-in SD card slot for memory expansion
STANDARD ACCESSORIES:
Windows labelling software CD
Quick Start Guide
USB port
Cable
Power cord
| Hardware Specifications | |
| Resolution | 600 dpi (24 dots/mm) |
| Print Method | Direct thermal/Thermal transfer |
| Display | Colour LCD touchscreen with buttons |
| Hardwire Connectivity | Ethernet GPIO Parallel port Serial RS-232 USB USB Host |
| Wireless Connectivity | Bluetooth MFi Wi-Fi with Bluetooth |
| Enterprise Printer Management | TSC Console SOTI Connect (license required) |
| Type | Industrial |
| Max. Print Speed | 6 ips (152 mm/s) |
| Max. Print Width | 4.09″ (104 mm) |
| Max. Print Length | 100″ (2,540 mm) |
| RAM | 256 MB SDRAM |
| Flash | 512 MB |
| Expandable Flash | microSD card reader; up to 32 GB |
| Optional Cutter | Regular cutter (full-cut guillotine cutter); Heavy duty cutter (full-cut guillotine cutter); Care label cutter |
Media Specifications
| Internal Label Capacity | 8″ (203.2 mm) OD |
| Max. Media Width | 0.79″ – 4.5″ (20 – 114 mm) |
| Media Type | Continuous; Die-Cut; Black Mark (bottom side or top side black mark); Fan-Fold; Notch; Perforated; Tag; Care Label (Outside Wound) |
| Max. Ribbon Length | 600 Meters |
| Ribbon Width | 1″ – 4.5″ (25.4 – 114.3 mm) |
| Media Core Diameter | 1″ – 3″ (25.4 – 76.2 mm) |
| Min. Label Length | 0.2″ (5 mm) |

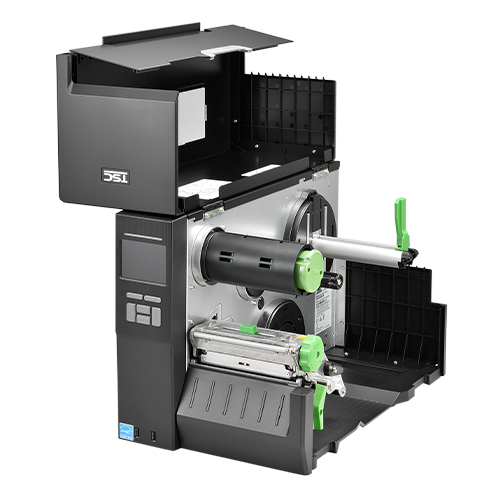

| Construction | Die-cast print mechanism and base with a bi-fold metal cover with large clear media view window |
| Programming Languages | TSPL-EZD |
