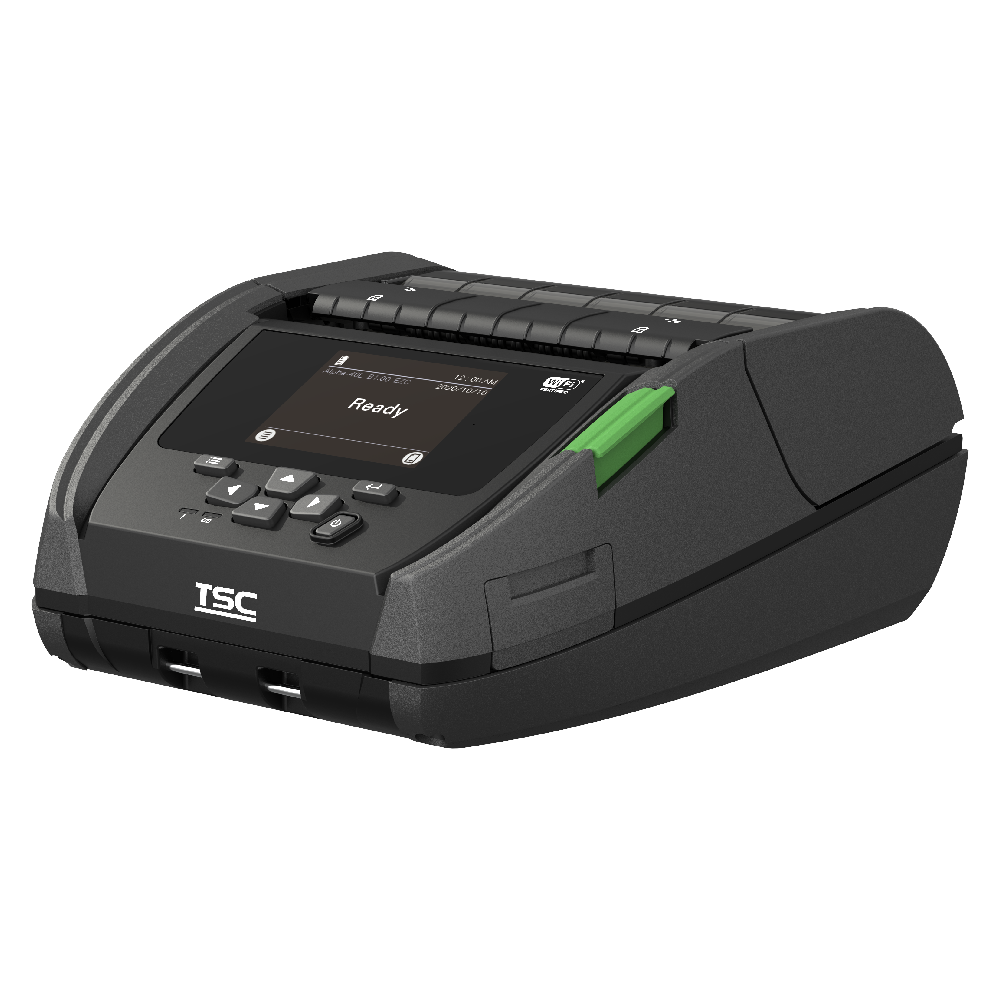

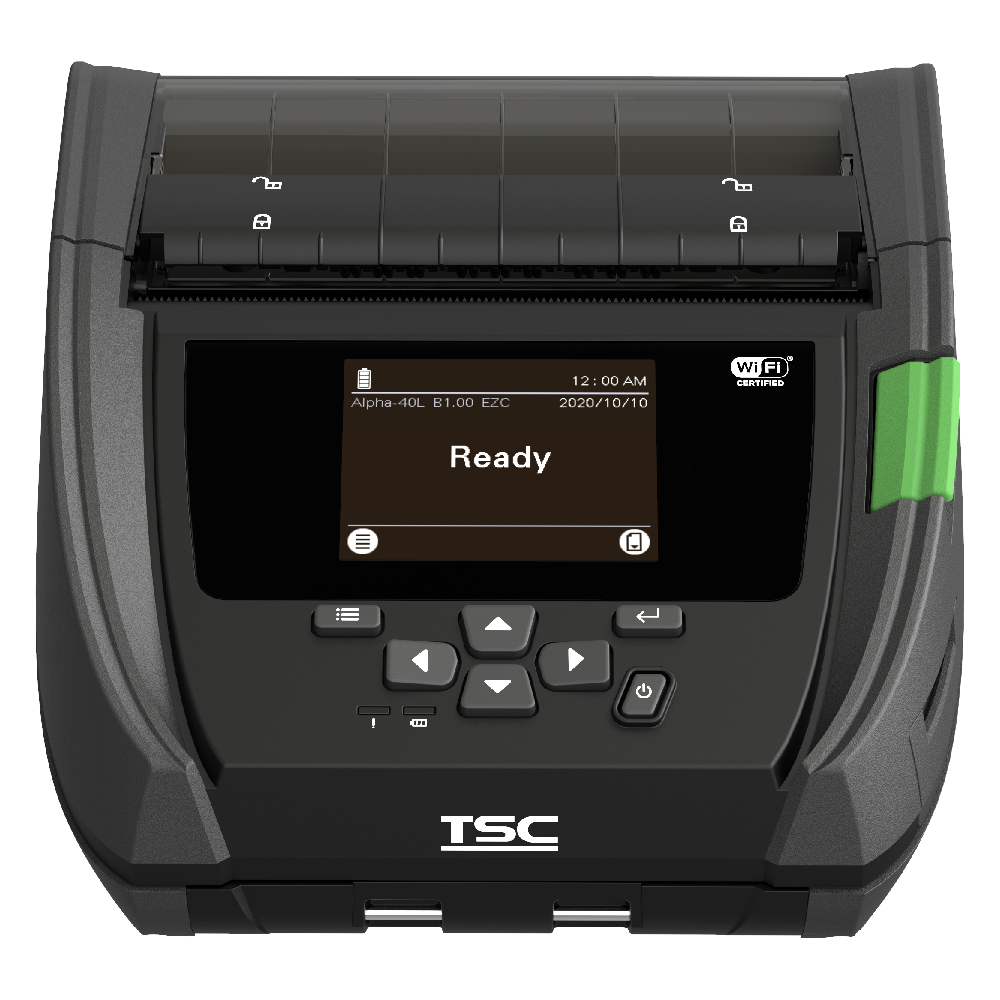

Alpha-40L Mobile Label Barcode Printer
TSC’s new mobile barcode label printer, the Alpha-40L is user-friendly, heavy-duty and drop-resistant. The new mobile
printers propel you into the next generation of smart, enhanced technology solutions for industrial-grade label printing applications.
With the Apple-certified MFi Bluetooth® 5.0 connection and 802.11 a/b/g/n/ac Wi-Fi fast roaming features, the Alpha-30L and
Alpha-40L not only provide reliable and seamless communication with users’ devices but also securely prints labels wherever they are
needed.
The Alpha-40L’s smart battery paired with SOTI Connect remote printer management and TSC Console provides
unprecedented levels of productivity for enterprises to scale their business seamlessly and efficiently.
The Alpha-40L support versatile media handling solutions including a built-in peeler and a factory option for a linerless kit
for a smarter, greener solution. The brand-new mobile printers also provide a full line of accessories to assist in performing diverse
labelling tasks while on the go, especially in rigorous logistics applications.
Key Features
| Sophisticated TSC Sense Care | Seamless Mobility Communication | Integrated Software Pack |
| Auto scans and detects printhead bad dots during printing • Monitors smart battery to ensure full shift productivity, reduce total cost of ownership and avoid downtime |
MFi Bluetooth® 5.0 with NFC tap-to-pair setup enables easy connectivity • Dual-band Wi-Fi with fast roaming and enterprise-grade security ensures reliable and safe operation |
• Supports label printing applications for different platforms • TSC mobile printing app is available for both iOS and Android™ users |
| Industry-Specific Durability Standards | Dynamic Remote Printer Management | Full Line of Accessories |
| • IP54 rating for dust and water resistance • Rugged design for drops from 1.8 m and tumbles from 1 m |
• SOTI Connect and TSC Console support multiple management tasks, reduce maintenance costs and avoid downtime of business-critical devices |
• Assist in performing diverse labelling tasks including handsfree mobility |
Specifications:
| Feature | Specification |
|---|---|
| Printing Method | Direct Thermal |
| Resolution | 8 dots/mm (203 dpi) |
| Max. Print Speed | 5 ips |
| Max. Print Width | 104 mm |
| Max. Print Length | 2,794 mm (110”) |
| Enclosure | Plastic with rubber over moulded |
| Drop specification | 1.8 m (6 ft), with the protective case, can be 2.5 m (8.3 ft) |
| Memory | • Standard: 128 MB SDRAM, 128 MB Flash, microSD card reader for Flash memory expansion, up to 32 GB • Factory Option: 256 MB SDRAM, 512 MB Flash |
| Connectivity | USB 2.0, RS-232, Ethernet |
| Sensors | • Reflective sensor • Transmissive sensor • Peel sensor • Head open sensor |
| Connectivity | Either one selected • Type C USB 2.0 + MFi Bluetooth 5.0 + Passive NFC tag • Type C USB 2.0 + 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 + Passive NFC tag * Type C is for communication only. |
| Barcodes | • 1D barcode Code128UCC, Code128 subsets A/B/C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS • 2D barcode CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39 |
| Media Types | Roll, Fanfold, Die-cut Labels, Continuous/Perforated Tags |
| Media width | 50.8 ~ 112 mm with liner |
| Media height | • 12.7 ~ 2,794 mm (0.5” ~ 110”) • 25.4 ~ 152.4 mm (1” ~ 6”) for peeler mode |
| Media core diameter | • 12.7 mm (0.5”), standard • 19.1 mm (0.75”), with 0.75” ID adaptor |
| Max Roll Capacity | 67 mm OD |
| Dimensions | 160 mm x 191 mm x 79 mm |
| Weight | 985 g |
| Warranty | • Printer: 2 years • Print head: 25 km (1 million inches) or 12 months which comes first • Platen: 50 km (2 million inches) or 12 months which comes first • Battery: 1 year |
| Accessories | • Quick start guide • Belt clip • Li-ion battery • Power adapter |
| Factory options | • Media sensor position (default centre, right, or left side) • Linerless kit |
| User options | • 1-slot battery charger • 4-slot battery charger • 12–24VDC vehicle power adaptor • 12–60VDC vehicle power adaptor • 12–48VDC power source with a battery eliminator • Vehicle mount adapter can be used with RAM® MOUNTS |
