Description

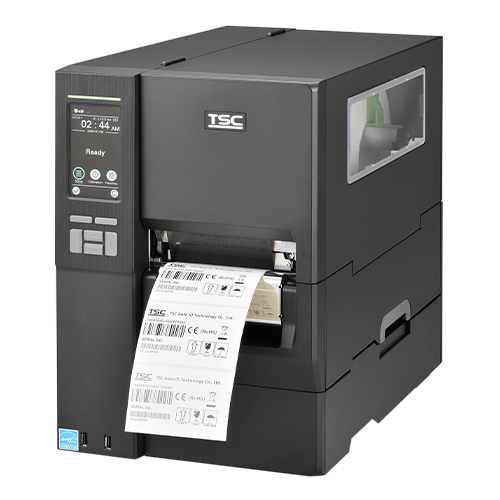

TSC MH341P thermal transfer printer 300 dpi 12 ips – with LCD & Touchscreen
There are 18 MH series 4-inch wide printer models available in our performance industrial printer lineup. This series offers print resolution at 203 dpi and print speeds up to 14 ips, 300 dpi resolution to print speeds up to 12 ips, and 600 dpi resolution which makes it ideal for printing very small 2D barcodes, graphics, fine print, and other ultra-high-resolution images. Multiple resolutions and the ability to print on a wide variety of labels, ranging from healthcare patient safety, electronics, and jewellery labelling to shipping and distribution labels, make the MH Series ideal for industrial-duty printing.
| Hardware Specifications | |
| Resolution | 300 dpi (12 dots/mm) |
| Print Method | Direct thermal/Thermal transfer |
| Display | Colour LCD touchscreen with buttons |
| Hardwire Connectivity | Ethernet GPIO Parallel port Serial RS-232 USB USB Host |
| Wireless Connectivity | Bluetooth MFi Wi-Fi with Bluetooth |
| Enterprise Printer Management | TSC Console SOTI Connect (license required) |
| Type | Industrial |
| Max. Print Speed | 12 ips (305 mm/s) |
| Max. Print Width | 4.09″ (104 mm) |
| Max. Print Length | 450″ (11,430 mm) |
| RAM | 256 MB SDRAM |
| Flash | 512 MB |
| Expandable Flash | microSD card reader; up to 32 GB |
| Optional Cutter |
Media Specifications
| Internal Label Capacity | 8″ (203.2 mm) OD |
| Max. Media Width | 0.79″ – 4.5″ (20 – 114 mm) |
| Media Type | Continuous; Die-Cut; Black Mark (bottom side or top side black mark); Fan-Fold; Notch; Perforated; Tag; Care Label (Outside Wound) |
| Max. Ribbon Length | 600 Meters |
| Ribbon Width | 1″ – 4.5″ (25.4 – 114.3 mm) |
| Media Core Diameter | 1.5″ – 3″ (38.1 – 76.2 mm) |
| Min. Label Length | 0.2″ (5 mm) |
| Construction | Die-cast print mechanism and base with a bi-fold metal cover with large clear media view window |
| Programming Languages | TSPL-EZD |
STANDARD ACCESSORIES:
Quick Start Guide
USB port cable
Power cord
